Step 8
Click for Details

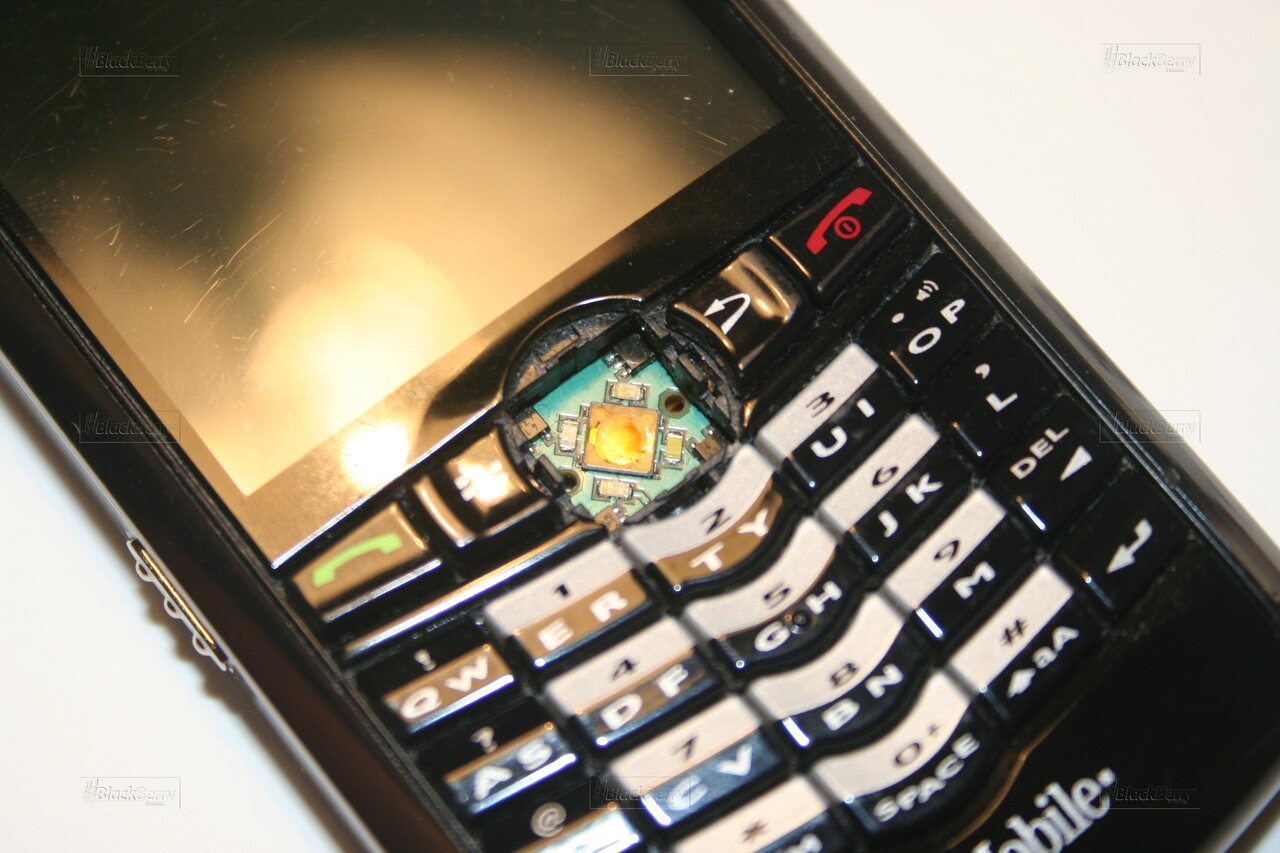

Make sure your internals are dry and just check them out in general. LEDs are laid out as follows: Upper Left = Green, Upper Right = Red, Lower Left = Blue, Lower Right = White. The copper pad in the center is the select pad when you depress the trackball.
